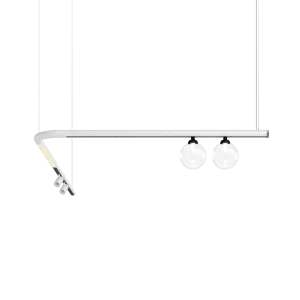

TUBO SYSTEM T35

Technical specifications

• Overall base dimensionsØ35 mm
• Minimum bend radius500mm
• Color temperature3000K/4000K
• Color Rendering Index (CRI)≥90
• Power supplyNO DIMM/DALI/BLUETOOTH
• MODULE TUBO LINE
• Input powerFrom 10,8 W/m
• Luminous fluxFrom 795 lm/m
• MODULE TUBO UGR
• Input powerFrom 29,6 W/m
• Luminous fluxFrom 2848 lm/m
• OpticsUGR 50°/ 50°х50°
• MODULE STICK XS
• Input powerFrom 5W
• Luminous fluxFrom 268lm
• Optics15° / 24° / 36°
• Rotation and tilt angle90°/ 360°
• MODULE SPRING XS
• DimensionsØ32 mm х from H100 mm
• Input powerFrom 2W
• Luminous fluxFrom 210 lm
• Optics15°/ 24° /38° / 50°
• MODULE BALL
• DiameterØ80/100/120 mm
• Input powerFrom 3 W
• Luminous fluxFrom 300 lm
• ShadeGlass/Matte
