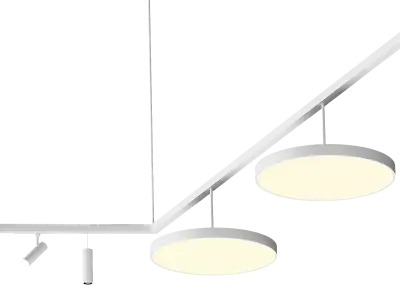

SYSTEM 40

Technical specifications

• Overall base dimensions40х40 mm
• Color temperature2700K/3000K/4000K
• Color Rendering Index (CRI)≥90
• Power supplyNO DIMM/DALI/BLUETOOTH

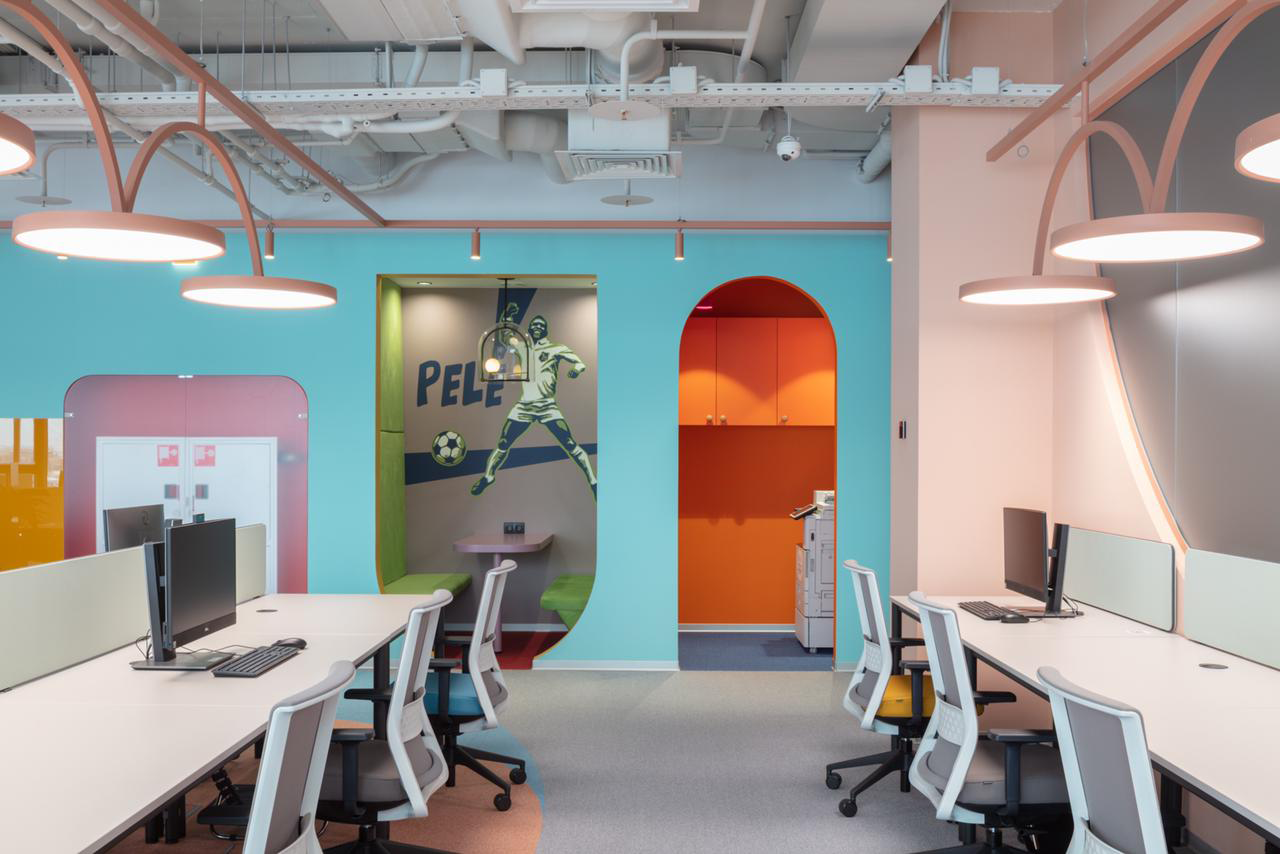

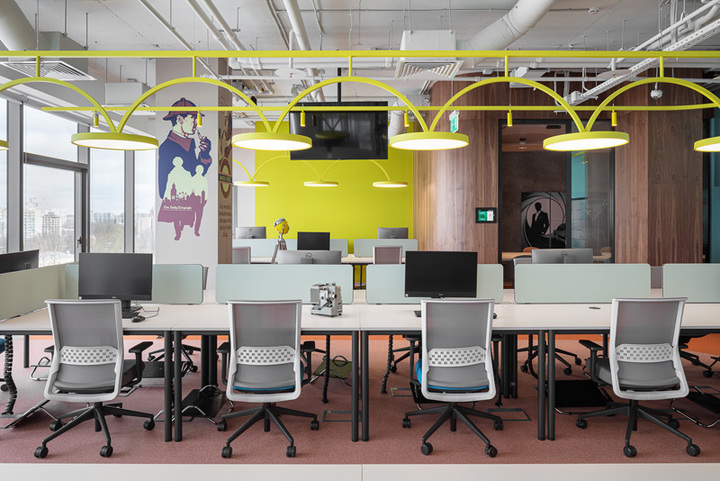

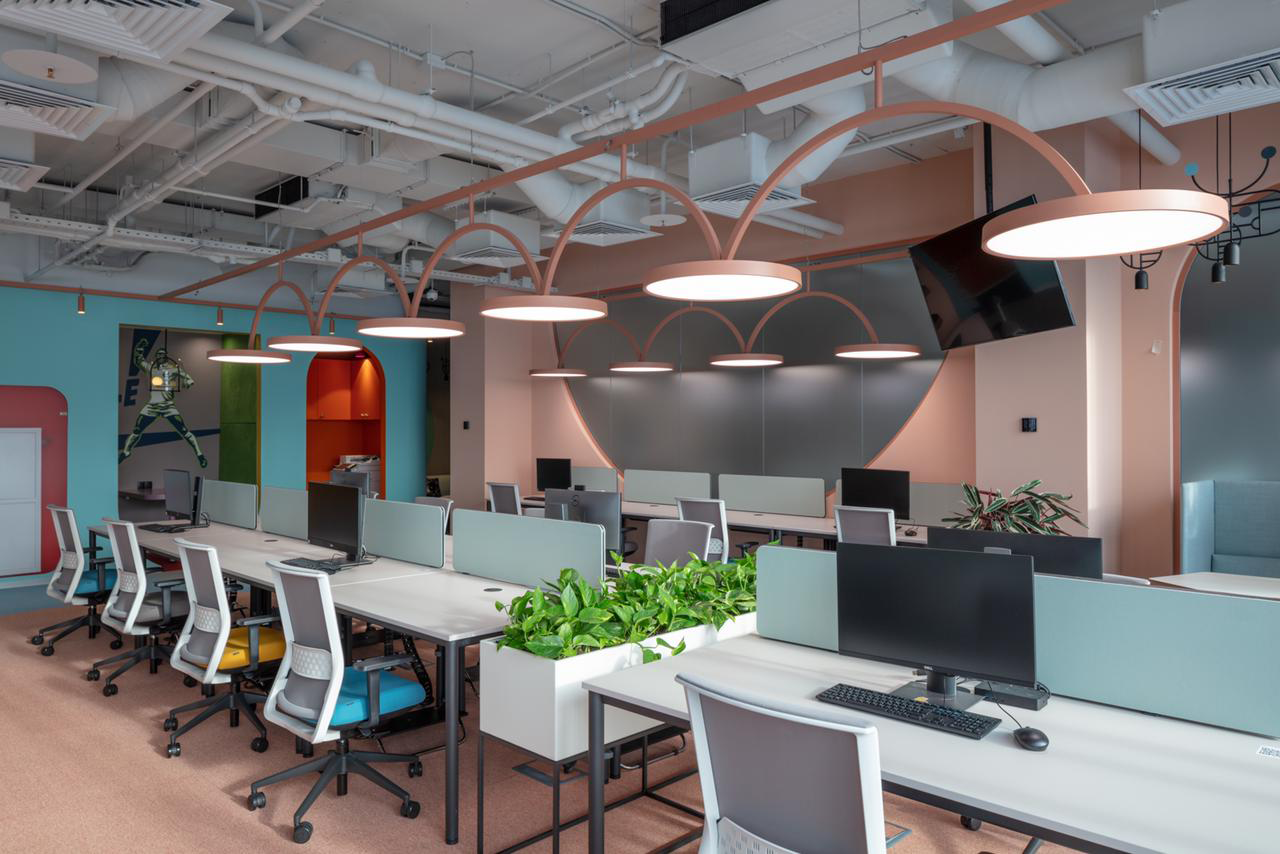

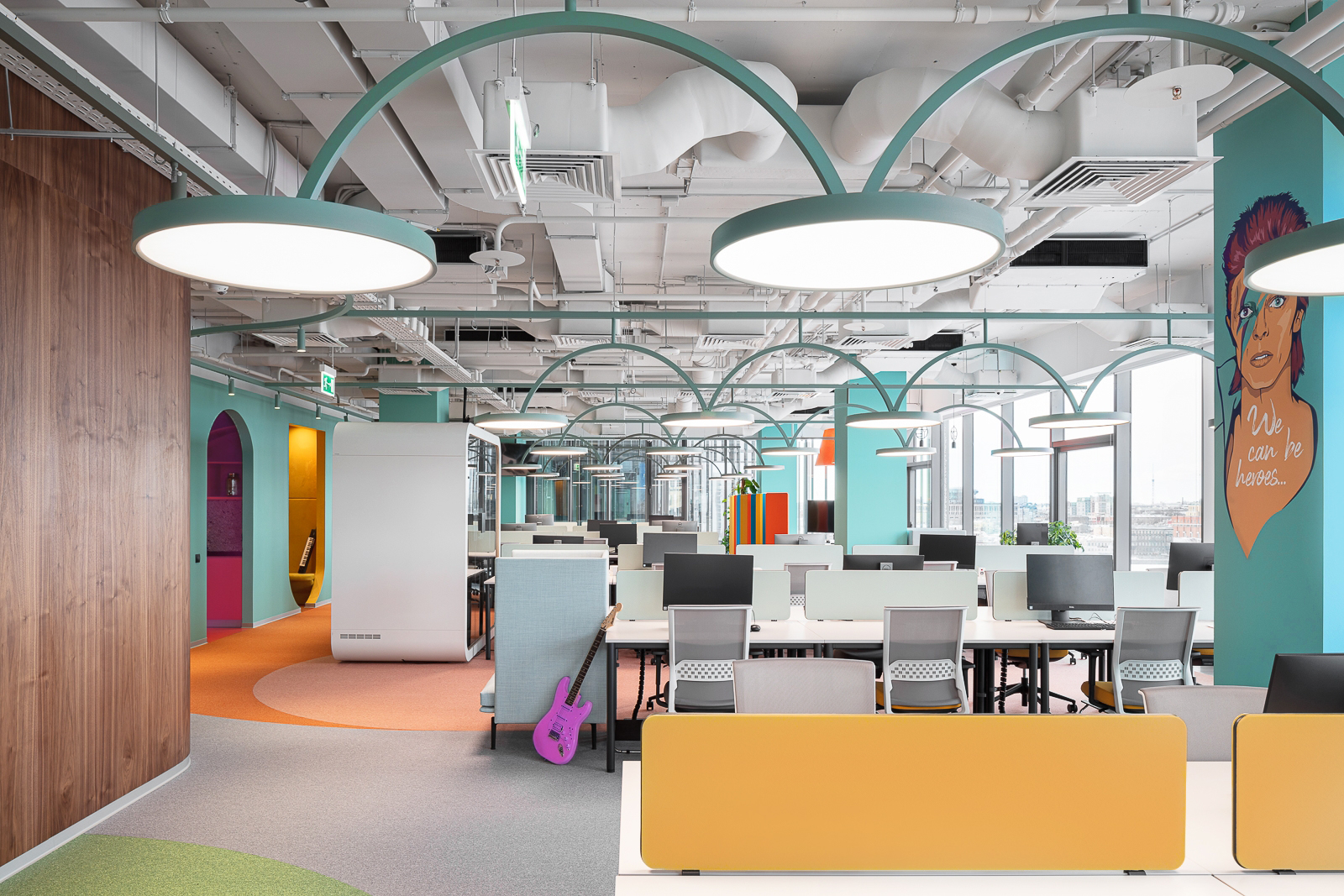

• MODULE ROUND T
• DimensionsØ600 H50mm
• Input power40W
• Luminous flux3200 lm
• MODULE SPRING XS RO
• DiameterØ32mm
• Input power2W
• Luminous flux210 lm
• Optics15°/ 24° /38° / 50°
• MODULE SPRING M RO
• DiameterØ40 mm
• Input powerFrom 3W
• Luminous fluxFrom 221 lm
• Optics15°/ 24° / 38° / 50°
• MODULE SPRING L O/RO
• DiameterØ52 mm
• Input powerFrom 5W
• Luminous fluxFrom 390 lm
• Optics RO15° / 30° / 45°
• Optics O10° / 24° / 36°/ 55°
• MODULE AIR ZOOM
• DimensionsH163 L203 Ø80mm
• Input power20W
• Luminous fluxFrom 1325 lm
• Optics15°- 50°
• Rotation and tilt angle90°/ 350°
• MODULE STICK S O/RO
• DimensionsØ52 L150 H105 mm
• Input powerFrom 7W
• Luminous fluxFrom 592 lm
• Optics O10° / 24° / 36° / 55°
• Optics RO15° / 30° / 45°
• Rotation and tilt angle90° / 350°
• MODULE STICK M O/RO
• DimensionsØ52 L180 H105 mm
• Input powerFrom 9W
• Luminous fluxFrom 740 lm
• Optics O10° / 24° / 36° / 55°
• Optics RO15° / 30° / 45°
• Rotation and tilt angle90° / 350°
